Extending Python with Cython

Questions

• How does runtime performance of Python compare to languages like C, C++ or Fortran?

• How do we use code written in other languages from within Python? In what situations is this useful?

Objectives

• Understand how compiled extension modules can speed up code execution.

• Build your first compiled extension module with Cython.

• Learn to optimize your Cython code with static type declarations.

• Learn to use Numpy arrays in Cython code and implement common performance enhancements for Cythonized arrays.

Callout

Using Cython requires that you have a working environment for compiling C code. This goes beyond the software requirements for this course, so the teaching will be given in form of demonstrations and no exercises. You may still follow along with the code examples but you will need to have Cython and a working C compiler available. You can install both to your Conda environment with conda install -c conda-forge cython c-compiler.

Python and performance

Interpreted languages like Python are rather slow to execute compared to languages like C or Fortran that are compiled to machine code ahead of execution. Python in particular is both strongly typed and dynamically typed: this means that all variables have a type that matters for operations that can be performed on the variable, and that the type is determined only during runtime by the Python interpreter. The interpreter does a lot of “unboxing” of variable types when performing operations, and this comes with significant overhead. For example, when just adding two integers

a = 7
b = 6
c = a + b

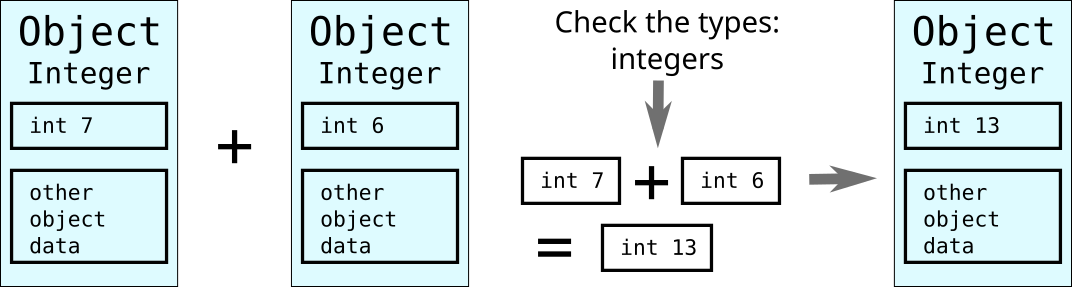

the Python interpreter needs to:

1. Check the types of both operands

2. Check whether they both support the + operation

3. Extract the function that performs the + operation (due to operator overloading objects can have a custom definition for addition)

4. Extract the actual values of the objects

5. Perform the + operation

6. Construct a new integer object for the result (“boxing”)

Meanwhile in languages like C, the types are known at compilation time, which allows the compiler to optimize many of the above steps away for better performance at runtime.

Scientific programs often include computationally expensive sections (e.g. simulations of any kind). So how do we make Python execute our code faster in these situations? Well that’s the neat part: we don’t! Instead, we write the performance critical parts in a faster language and make them usable from Python.

This is called extending Python, and usually boils down to writing C-code with Python-specific boilerplate, or using a specialized tool for generating such C code from Python code (so-called transpilers). The C-code is compiled into a shared library, in this context called a Python extension module. Most scientific Python libraries (Numpy, Scipy etc) do exactly this: their computationally intensive parts are either written in a compiled language, or they call an external library written in such language.

When working on your own Python project, you may find that there is a C library that does exactly what you need, but it doesn’t provide a Python interface. Or you may have computationally intensive code that doesn’t vectorize nicely for Numpy. In cases like these it can be useful to write your own extension modules that you then import into your Python code.

Here we discuss one popular approach for extending Python with compiled code: using a tool called Cython.

Cython

Cython is a framework for writing Python-like code that can be processed with the Cython compiler to produce optimized code. Cython is designed to provide C-like performance for code that is mostly written in Python by adding only a few C-like declarations to existing Python code. As such, Cython aims to provide the best of the both worlds: the good programmer productivity of Python together with the high performance of C. Cython also makes it easy to interact with external C/C++ code.

The Cython compiler processes code written in Python, or more commonly the Cython extension of Python language, and turns it into valid C-code which is then compiled into a Python extension module using a C compiler (GCC, Clang, MSVC, …). The Cython programming language is a superset of Python that adds C-like static type declarations and other features that make it possible to generate efficient machine code.

Callout

Unlike plain Python code, Cython code must be compiled ahead of time before it can be executed. This is usually done during the build phase of a project. Note that Cython is not a just-in-time (JIT) compiler like e.g. Numba, although you can call the Cython compiler at runtime for JIT-like behavior if you really want to.

Your first Cython module

Suppose we have a Python module called my_module.py that contains:

def add(x, y):
    result = x + y
    return result

Cython allows one to compile my_module.py directly to machine code while still allowing its contents to be imported and used from Python code. We can Cythonize the module “manually” from command line:

$ cythonize -i my_module.py

This produces a file called my_module.c, full of C code. One can investigate the generated .c file but it is not really meant for humans to read, because of all the boilerplate that Cython adds in order to make the compiled code available to Python. Already this simple function results in over 7000 lines of C code!

The option -i (meaning inplace) tells Cython to also compile the generated .c file into an extension module in the same directory. This could also be done manually by invoking a C-compiler of your choice. On Linux/Mac systems the compiled module will be called something like my_module.cpython-314-x86_64-linux-gnu.so, on Windows the suffix will be .pyd.

The extension module can be imported from Python in the same way as one would import a pure Python module, e.g.:

from my_module import add
z = add(4, 5)

Usually when working with Cython, one does not Cythonize the whole program but only selected modules. A typical Cython project is separated into plain Python modules (file suffix .py), and Cython code files (suffix .pyx). The .pyx files will usually contain Cython-specific code like static type information, so that they are not valid Python code anymore and must be Cythonized before use.

Callout

Real-world project don’t usually invoke Cython from the command line and instead use an established build tool like setuptools to handle the Cythonization during the project’s build phase. More info is available on the Cython documentation. See also the course page on packaging.

Using Cython with Jupyter

Important

Due to a known issue with %%cython -a in jupyter-lab we have to use the jupyter-nbclassic interface for this episode.

Jupyter supports Cython compilation directly inside notebooks via an extension, assuming your environment has Cython installed.

We first load the Cython extension, e.g. in the very first cell:

%load_ext Cython

We can Cythonize cell contents using the magic %%cython:

%%cython
def add(x, y):
    result = x + y
    return result

The compiled function can then be called from other cells.

Demo

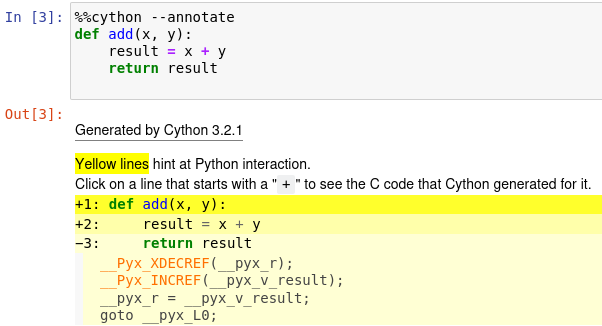

There is also %%cython --annotate, or %%cython -a for short, which is useful for analyzing the generated C code. Try executing the code for add() with this magic command in Jupyter. Upon doing so:

1. Estimate the amount of interactions with the Python runtime, by the intensity of the yellow background colour.

2. You will be able to inspect the underlying C code.

Solution

Adding static type information

So far our Cythonized extension module is rather minimal. We have reduced some of the interpreting overhead by compiling the code, but it’s still using Python’s fully dynamic type system with the same boxing and unboxing overhead as in standard Python. This is because there are no type declarations in the code that Cython could use to optimize.

When Cythonizing a Python code, static type information can be added either:

• In function signatures by prefixing the formal arguments by their type.

• By declaring variables with the cdef Cython keyword, followed by the the type.

To make Cython function that adds two integers and returns the result as an integer, we would write:

def add(int x, int y):
    cdef int result
    result = x + y
    return result

The function works now only with integers but with less boxing/unboxing overhead. Store this as my_module.pyx (note the file extension) and Cythonize as before:

$ cythonize -i my_module.pyx

Import this into Python and confirm that it works as expected with integers. However, if passing floating-point numbers the function is forced to interpret the inputs as integers before performing the addition. For example, add(1.4, 2.7) would return 3. This happens because there is an automatic conversion from the input Python objects to the declared C-types, in this case integers, when calling the Cythonized function from Python. Similarly the returned C variable is converted to a corresponding Python object.

To make the function work with floats we’d instead declare the types to be either float (32-bit) or double (64-bit) type instead of int. The table below lists the most common C types and their corresponding Python types. More information can be found in the Cython documentation.

From Python types	To C types
int	int, long
int, float	float, double
str/bytes	char *

Using Numpy arrays with Cython

Cython has built-in support for Numpy arrays.

As discussed in the Numpy lectures, Numpy arrays provide great performance for vectorized operations. In contrast, thing like for-loops over Numpy arrays should be avoided because of interpreting overhead inherent to Python for-loops. There is also overhead from accessing individual elements of Numpy arrays.

With Cython we can bypass both restrictions and write efficient loops over Numpy arrays. Consider e.g. a double loop that sets values of a 2D array:

import numpy as np

def slow_looper(N):
   """"""
   data = np.empty((N, N), dtype=int)

   counter = 0
   for i in range(N):
      for j in range(N):
            data[i, j] = counter
            counter += 1

We can Cythonize this as before to optimize the for-loops. A quick check with timeit shows that with N=100, the pure Python version takes 820μs and the Cythonized version (without any static typing) takes 700μs. This is nice, but we are still bottlenecked by array lookups and assignments, i.e. the [] operator, which invokes Python code.

We can get a huge speedup by adding a static type declaration for the Numpy array, and for the other variables too while we are at it. To do this we must import compile-time information about the Numpy module using the Cython-specific cimport keyword, then use Cython’s Numpy interface to declare the array’s datatype and dimensions:

import numpy as np   # Normal Numpy import
cimport numpy as cnp # Import for Numpy C-API

def fast_looper(int N):
   """"""

   # Type declaration: 2D array of 32-bit integers
   cdef cnp.ndarray[cnp.int32_t, ndim=2] data
   data = np.empty((N, N), dtype=np.int32)

   cdef int counter = 0
   # double loop is done at nearly C speed
   for i in range(N):
      for j in range(N):
            data[i, j] = counter
            counter += 1

Cythonizing and running the function with timeit shows that the function now only takes 3.30μs with N = 100. This is ~250 times faster than the pure Python implementation!

Callout

cimport numpy needs access to Numpy C-headers which are usually included in Python distributions. This usually works out of the box for Jupyter notebooks. However, if using the command line cythonize tool you may need to manually set include paths for the C compiler. Refer to the docs for more details.

Callout

It is good practice to also call cnp.import_array() after doing the cimport of Numpy. This is required for accessing attributes (like .shape) of typed Numpy arrays.

More Numpy indexing enhancements

When indexing arrays, Numpy does some bounds checking in an attempt to catch logic errors (e.g. attempting to access element at index 100 of an array of length 10). Numpy also checks for negative indices to support wraparound syntax like a[-1]. We can tell Cython to disable these checks for some extra performance:

import numpy as np
cimport numpy as cnp
cimport cython

@cython.boundscheck(False)
@cython.wraparound(False)
def fast_looper(int N):
   # ... Same function body as above ...

Whether these decorators actually result in faster code or not depends on how complicated your array usage is. In this simple example there is likely no measurable improvement: even if the checks are kept, modern compilers and processors are rather good at predicting unlikely branches and optimize the execution accordingly (“branch prediction”).

Disabling bounds checking of course means that out-of-bounds indexing will go undetected and lead to undefined behavior. It may crash your program or cause memory corruption, so be very careful if using these decorators!

When to Cythonize?

Static typing in Cython is a tradeoff between performance and the dynamical nature of Python code. You most certainly do not want to Cythonize your whole project: at that point you may just as well pick a different programming language!

Here are some rules of thumb to keep in mind when optimizing your code with Cython (see also Cython docs):

• Only Cythonize the modules/functions for which performance is really needed. Profiling tools help at identifying such bottlenecks.

• Static type declarations work the best for fundamental data types (integers, floats, strings) and for contiguous arrays. Operations on heterogeneous lists and dictionaries do not usually benefit much from Cython.

Alternatives to Cython

Numba is a tool that compiles Python code to optimized machine code on the fly without needing a manual compilation step. It works with Numpy but does not support all of Python’s features.

For creating compiled extension modules there are a plethora of tools and libraries. If you already have a working C/C++ codebase and would like to use it from Python, consider using one of the following:

• ctypes: part of Python standard library.

• CFFI: somewhat similar to ctypes but with more features and probably better for large projects.

• pybind11: very robust and modern way of creating extension modules. C++ only.

• PyO3 for Rust code.

Further reading

• Cython memory views are a newer and more general way of interfacing with Numpy arrays and other buffer-like objects.

• Calling C functions from Cython

Acknowledgements

This material has been adapted from the “Python for HPC” course by CSC - IT Center for Science.
