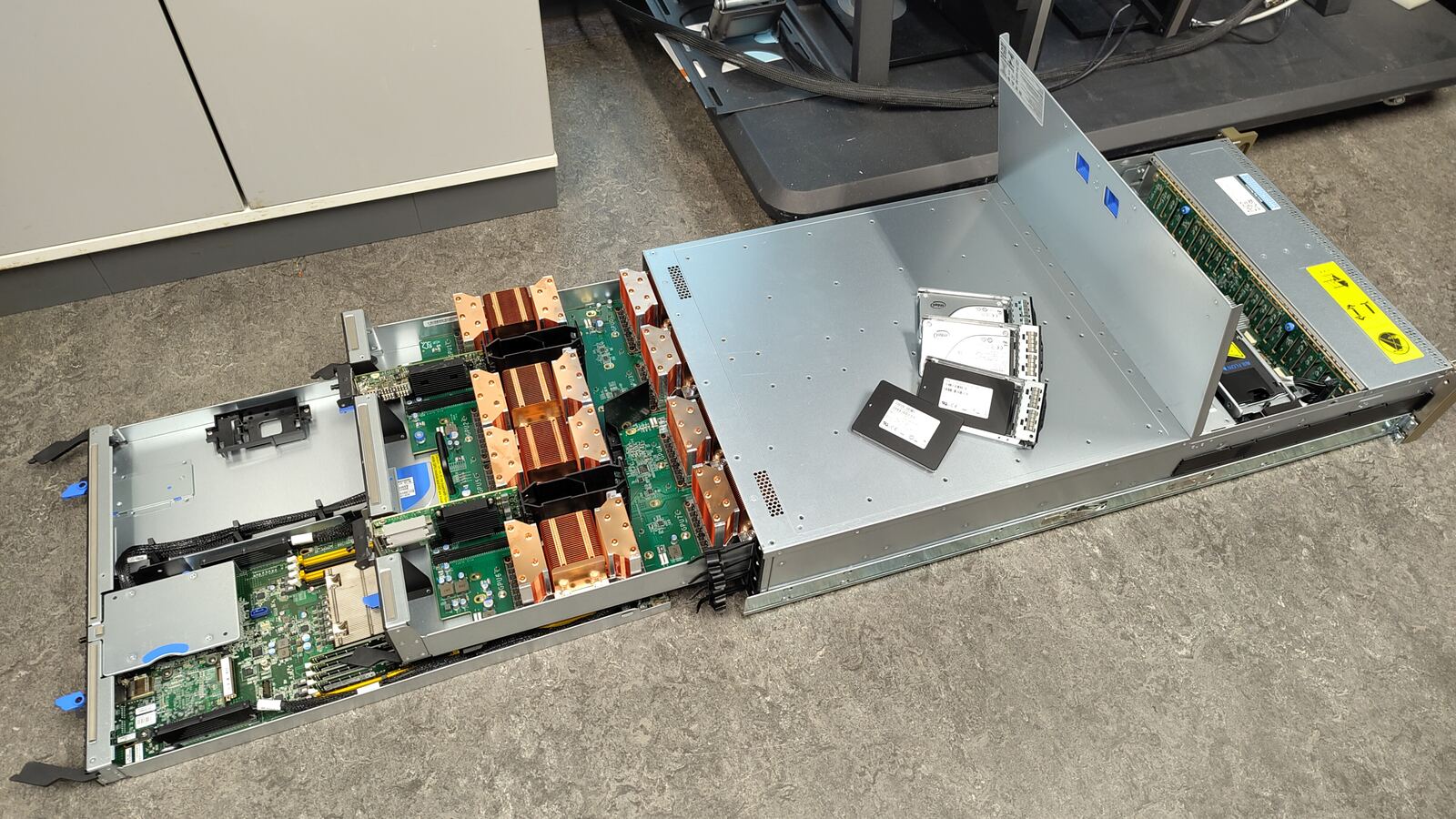

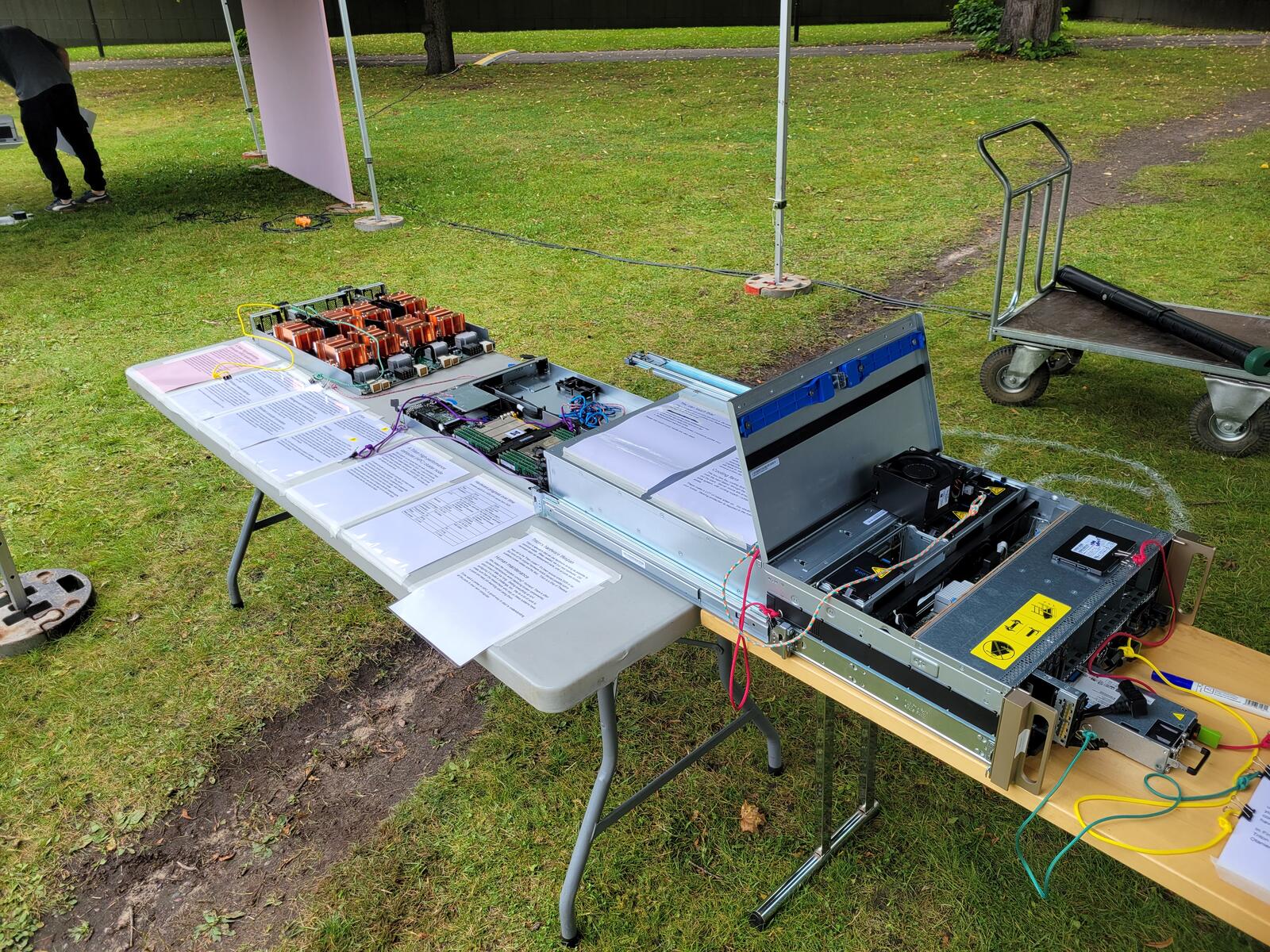

dgx04: an Aalto supercomputer, on public display

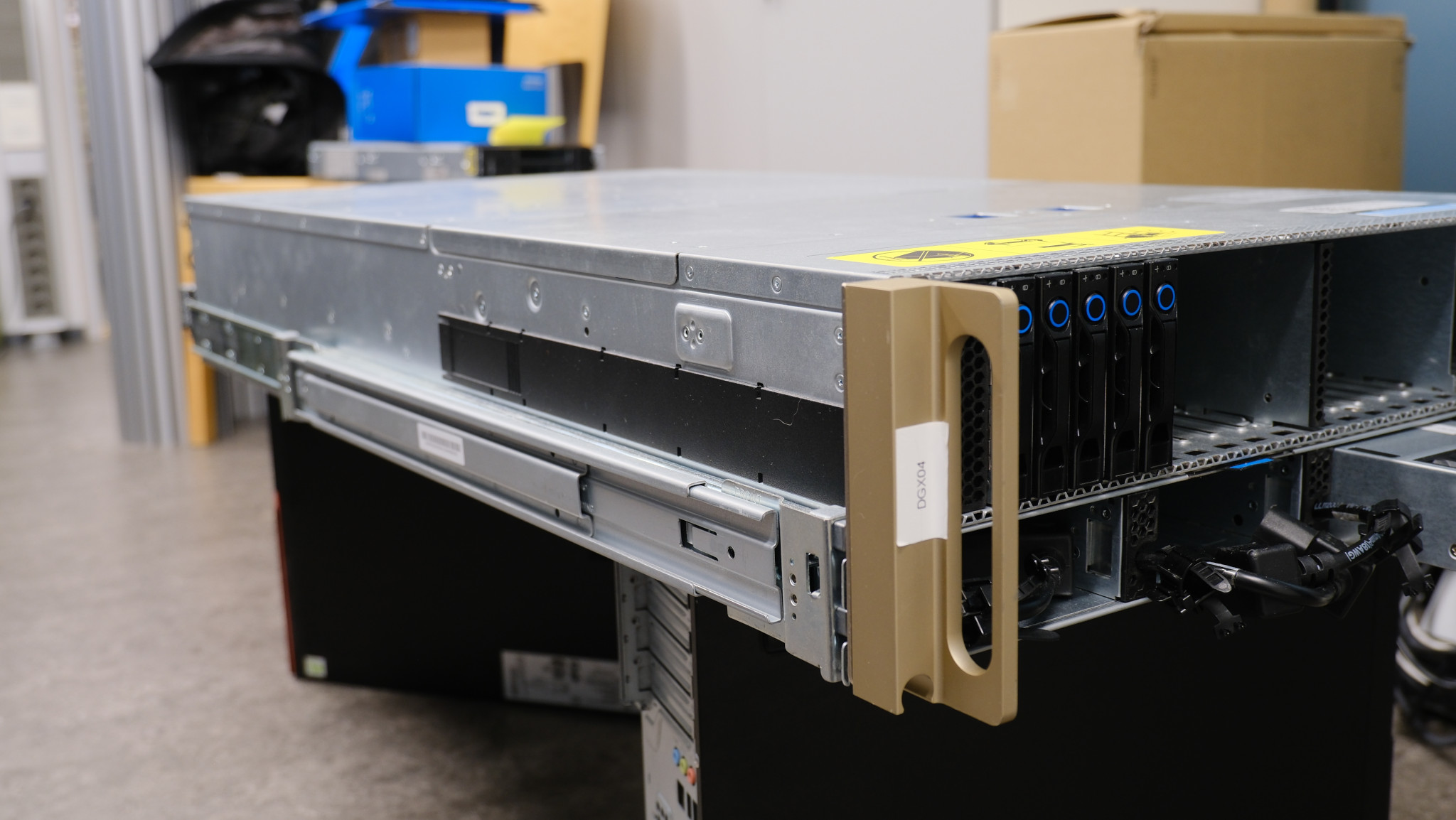

Rack mount case

The rack-mount system allows a high density of computers. Servers exist in height units of a "U" (44.45mm). They slide in on rails, so that each computer can easily be independently removed, maintained, and replaced. The cases often allow some parts (like hard drives or power supplies) to be replaced without removing the whole node from the rack itself. For more maintenance, the nodes can be partially slid out, maintained, and slid back in, without having to disconnect any cables or fully remove it from the rack.

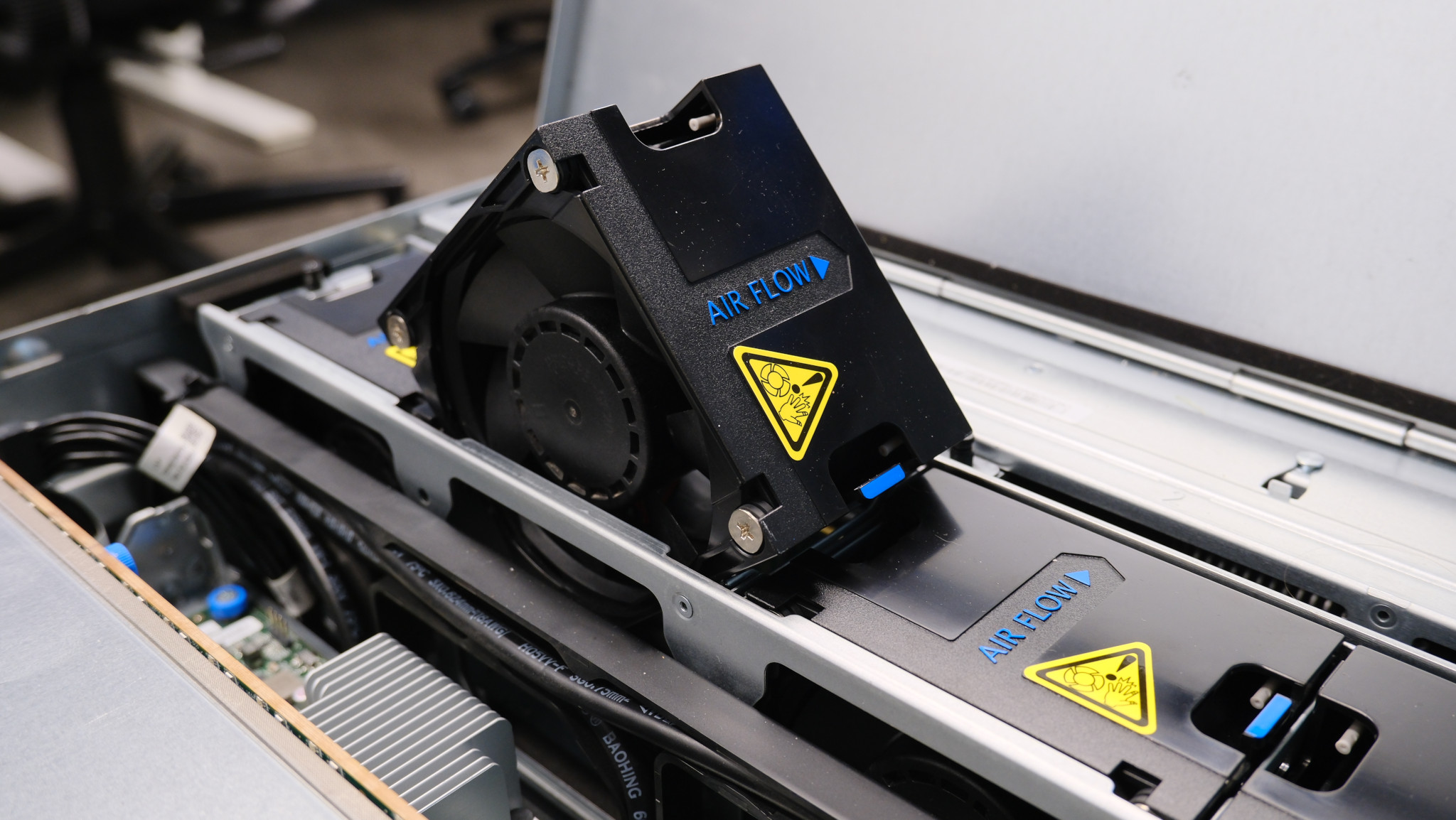

Cooling fans

This box has four cooling fans that pull air in through the front (with the hard disks), through the GPUs and processors, and then out the back. Server rooms are arranged with a cold aisle/hot aisle system, with cooling supply / outtake on the respective aisles.

These make a LOT of noise when on. You wouldn't run this in your home. Hearing protection is required in the machine room.

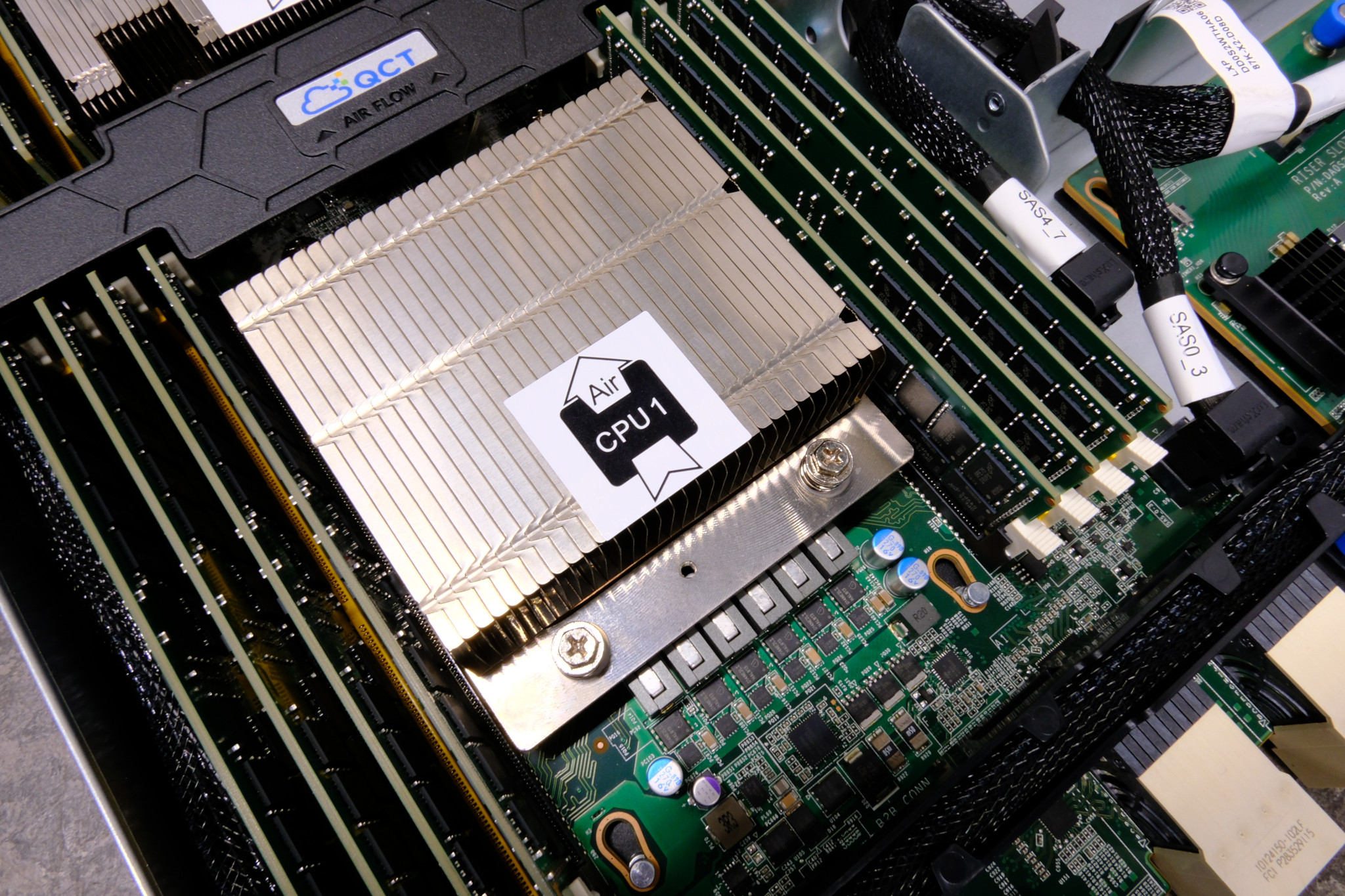

CPUs

This server has two main processors. (Intel architecture, 2x20 core Xeon E5-2698 v4 @ 2.2GHz) with 20 cores each for a total of 40 cores. An average laptop may have four cores. More cores mean it can do more things in parallel, like having 40 students working at the same time instead of just 4. In order to use GPUs efficiently, there must be plenty of CPUs available to feed the data into the GPUs.

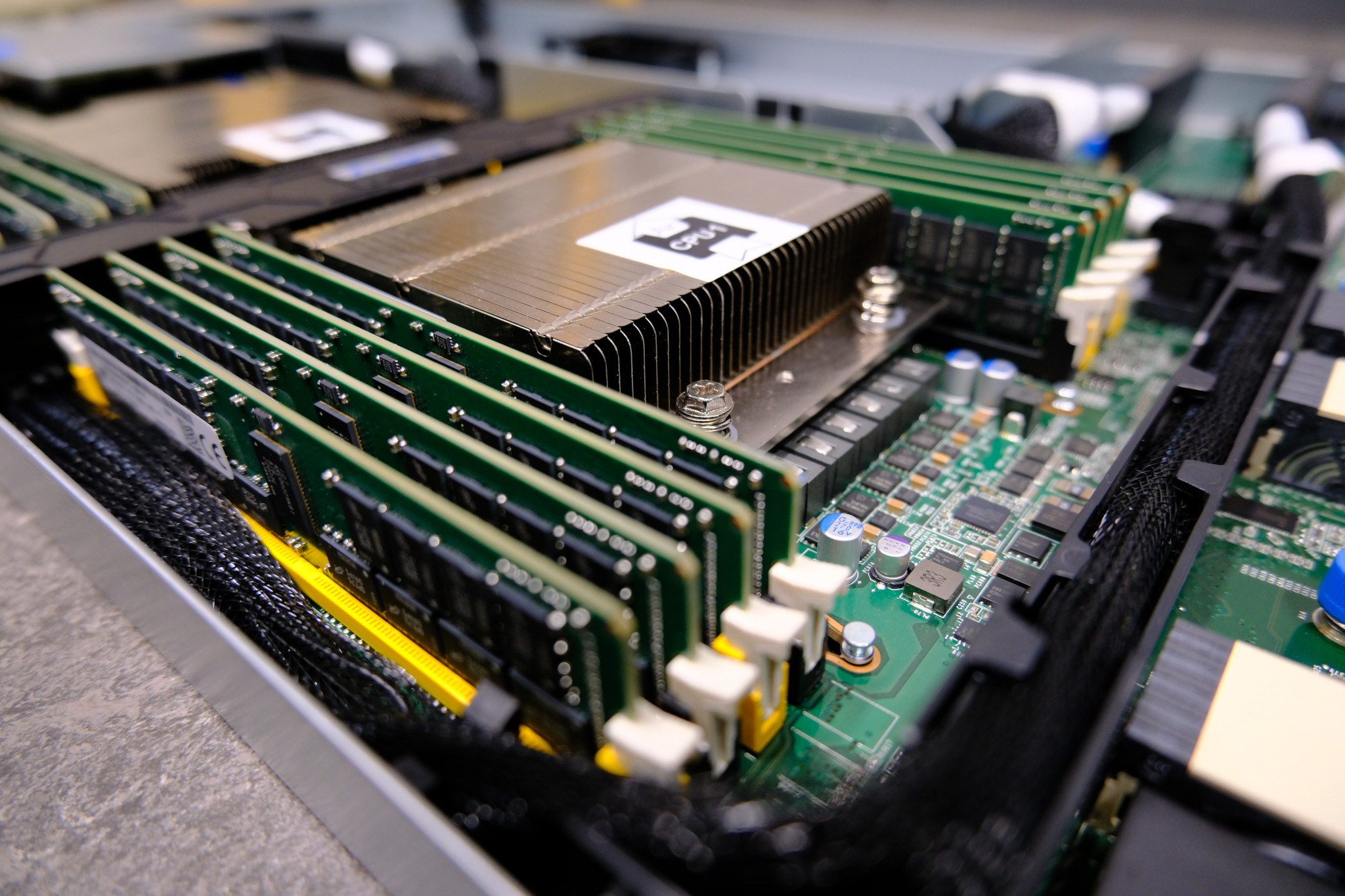

Memory

This is error correcting (ECC) computer memory (DDR4 standard), but it has 16 total slots, as opposed to the 2-4 slots found in most home computers. The 16 slots held a total of 512GB when it was new. Memory has been removed to replace broken memory in other computers - we scavenge parts to keep things running as long as possible to minimize electronic waste. Error correcting memory means that it can detect random bit flips. With this much memory always under heavy use, this ensures integrity of results.

The "2133" refers to the memory speed of 1067MHz - in addition to size, the memory bandwidth and latency are important considerations for speed.

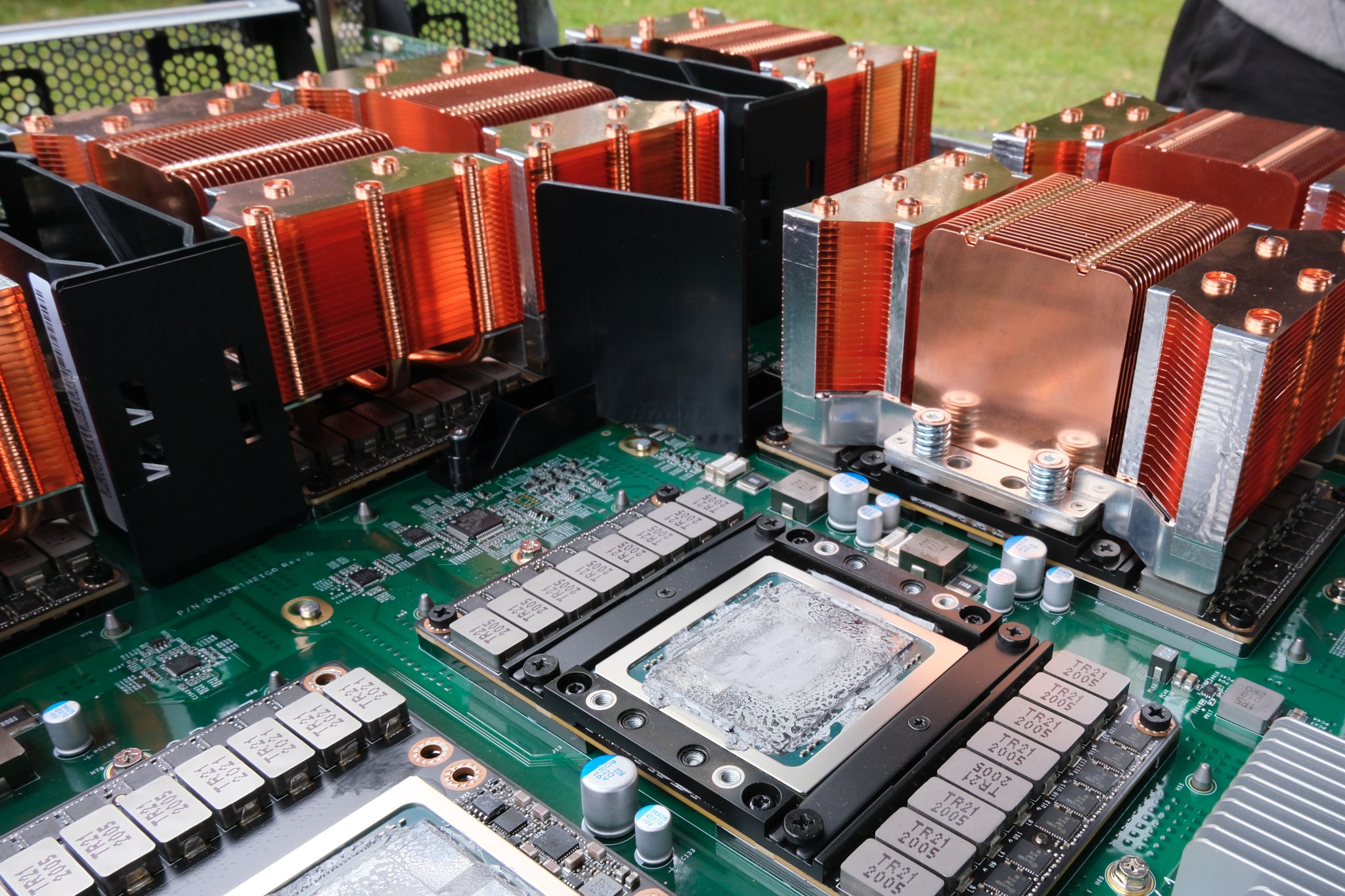

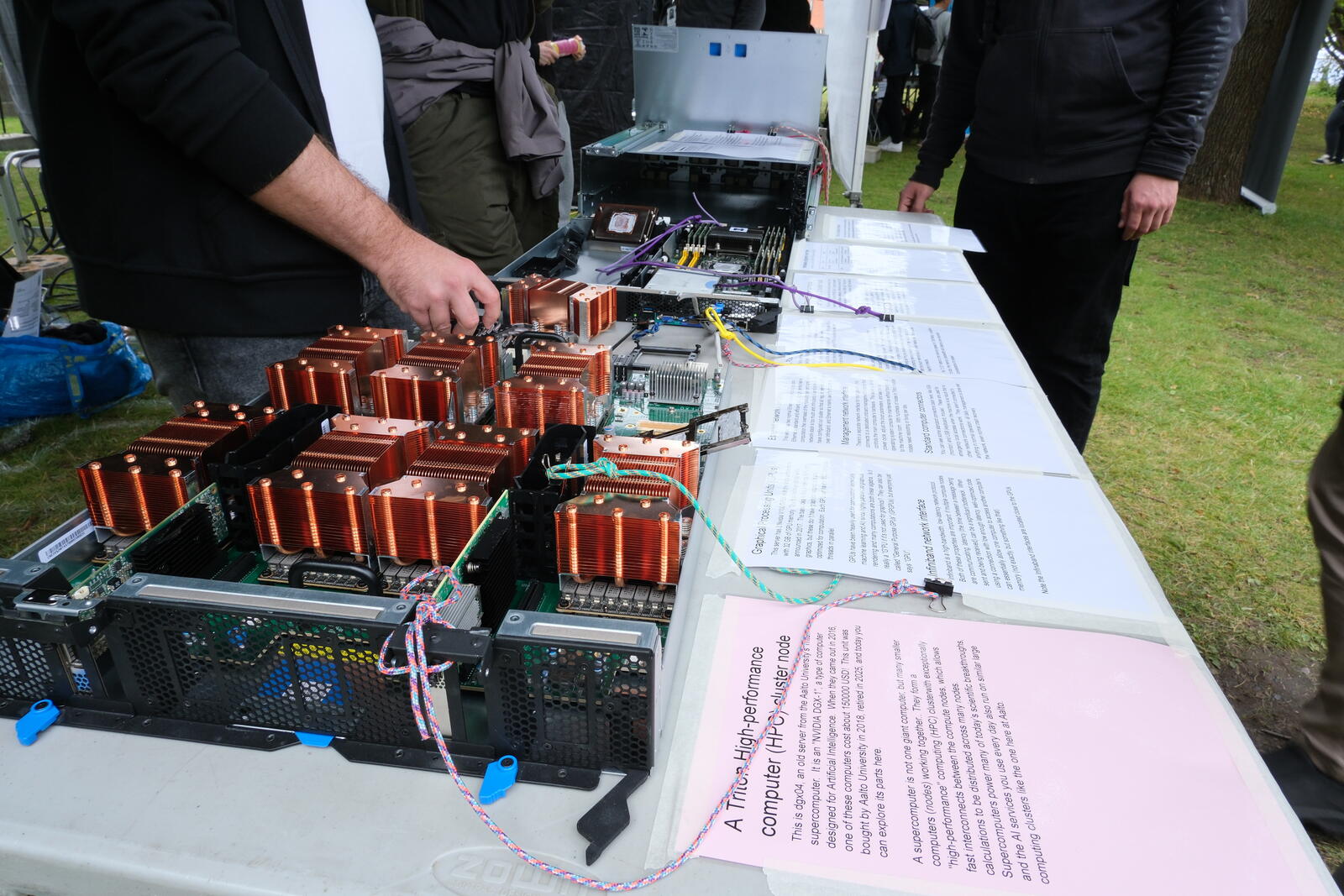

Graphical Processing Units (GPUs)

This server has 8 Nvidia V100 GPUs with the Volta architecture, with 32 GB of GPU memory. The first Volta products were announced in 2017. The basic idea is like a desktop GPU for graphics, but these don't have graphics outputs and are optimized for computation. Each GPU can handle 5120 compute threads in parallel.

GPUs have been heavily used for computation (especially machine learning and AI) since highly parallelized graphics rendering and many computations are both linear algebra. Is it really a "G"PU if it's not used for graphics? They can also be called "General Purpose GPUs" (GPGPUs), but everyone just says "GPU".

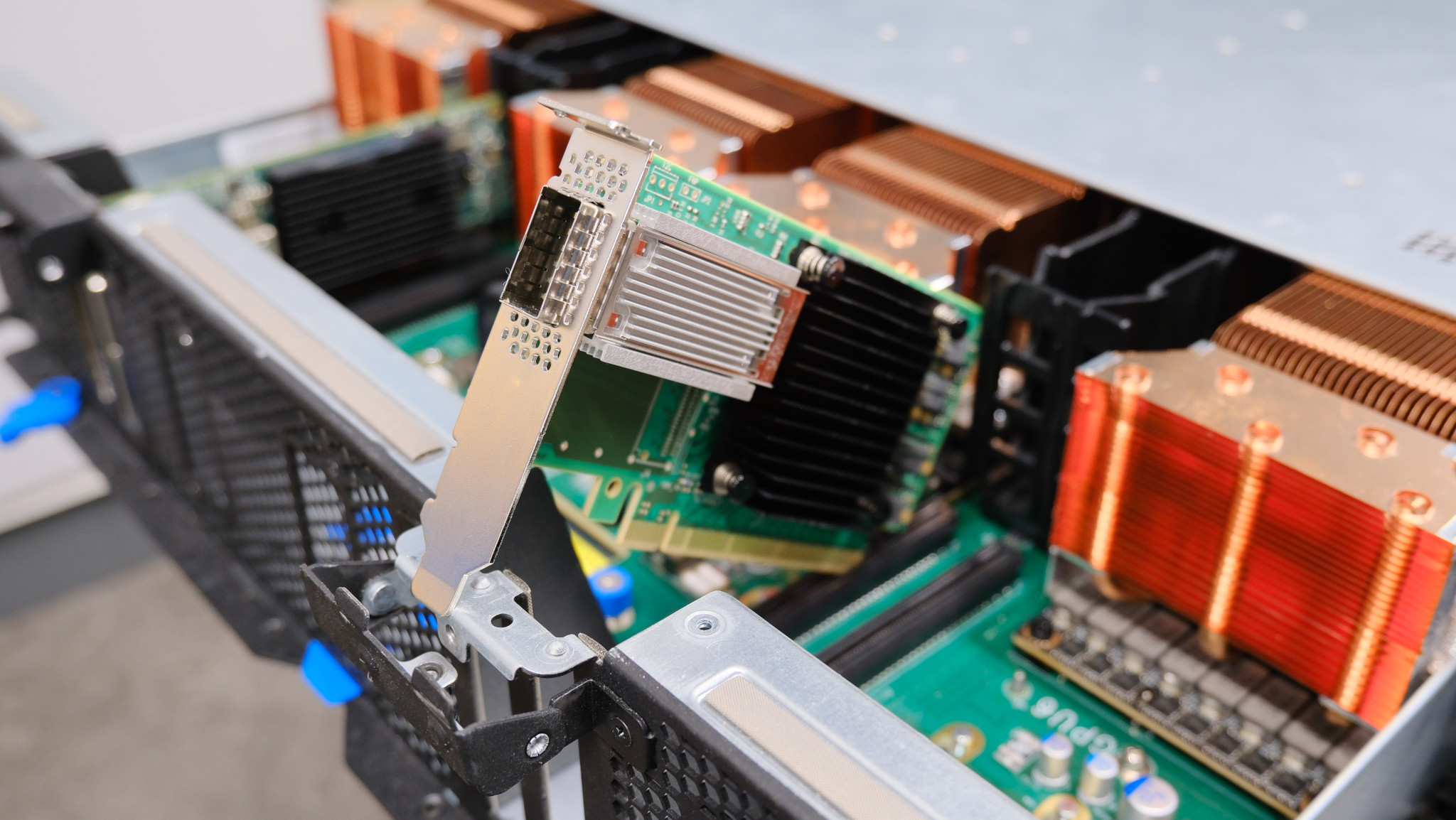

Infiniband network interface

Infiniband is a high-bandwidth, low-latency network protocol. Both of these properties are important: if multiple compute nodes are communicating, latency (the time between a message being sent and being received) can be a significant bottleneck. When using a connection with low enough latency, well-optimized code can essentially allow one computer to access another computer's memory (not exactly, but something like that).

Note the Infiniband interfaces are located close to the GPUs.

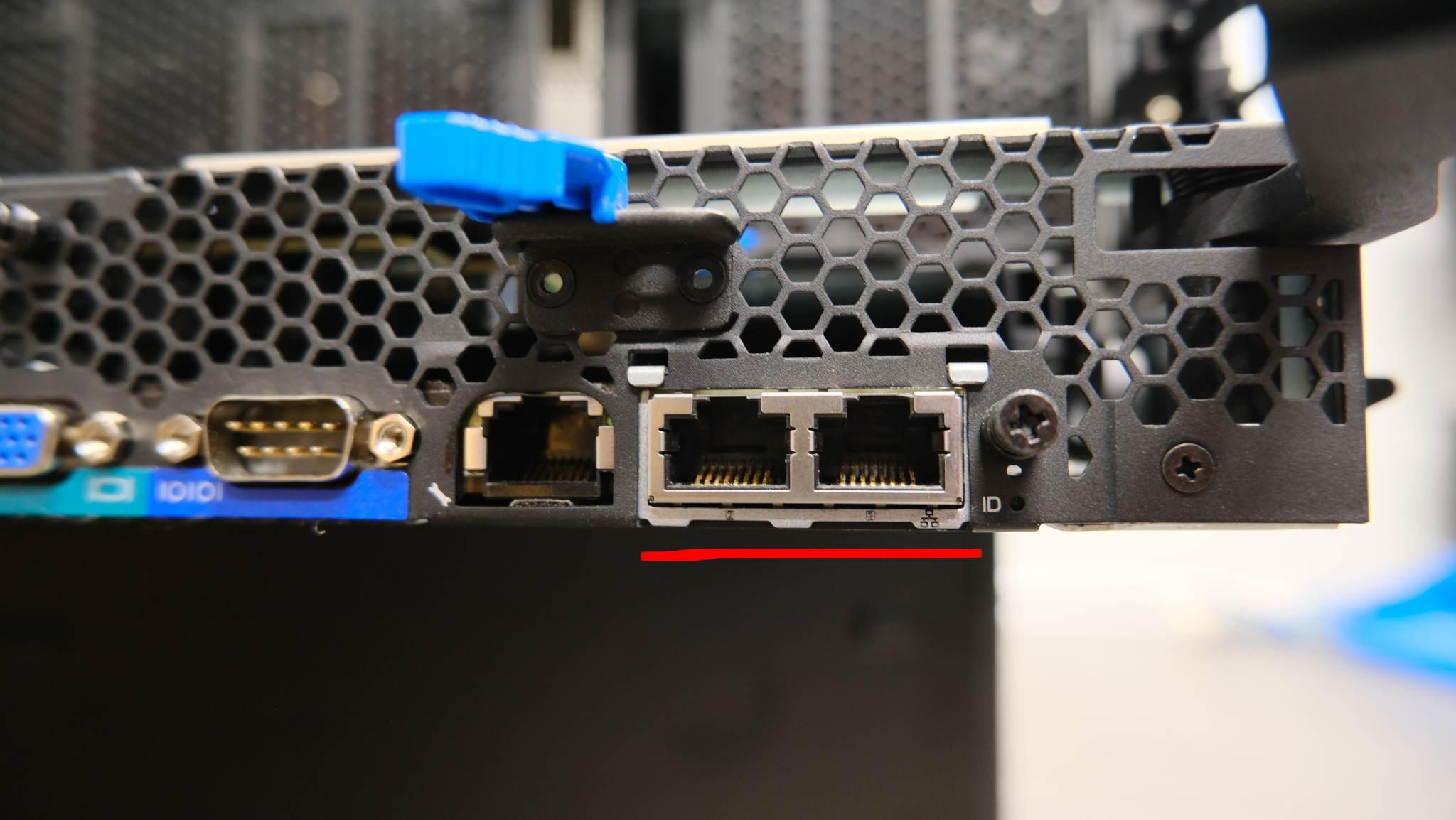

Ethernet network interface

This server has two normal Ethernet network connections. Ethernet is standard and efficient, but for high-performance computation the overhead of the operating system handling the network stack is too much and Infiniband is used instead. We have configured our cluster so that all regular network traffic goes over Infiniband, and Ethernet is mainly used for booting up.

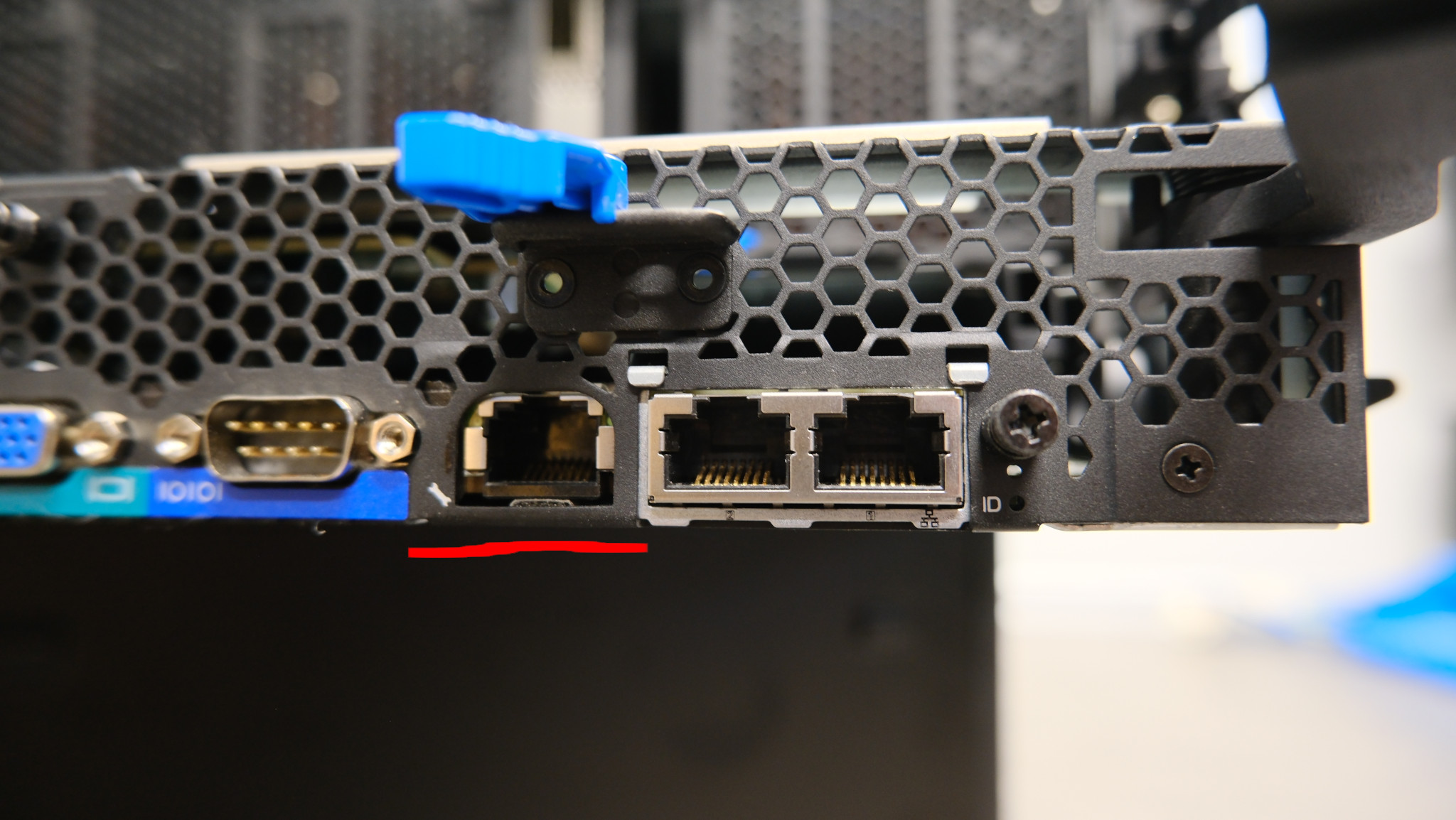

Management network interface

There's a separate network interface for management - this connects to a dedicated onboard management computer that controls the main computer's hardware. This allows us to reboot, power cycle, adjust the boot parameters, and see the raw operating system console for maintenance without having to go to the machine room. With hundreds of nodes in Triton, multiple nodes need rebooting or fixing per day.

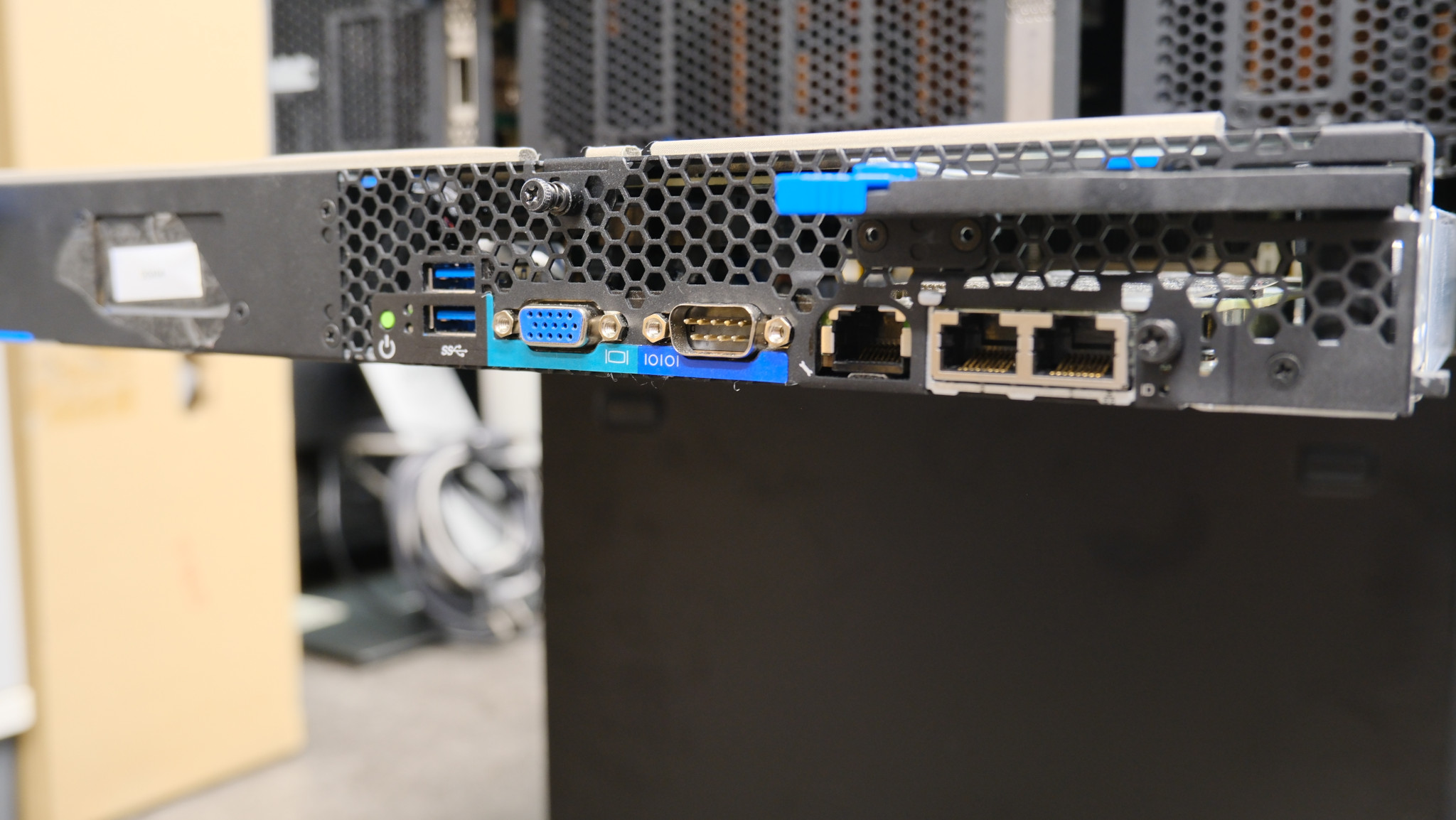

Standard computer connectors

You can see some standard connectors back here, like VGA (monitor) and USB (keyboard, mouse). These are used for emergency local access when the machine is so stuck that no other network connections work. They aren't connected to anything in normal operation - all daily management is done over the network, even normal crash recovery.

Hard drives

The DGX-1 was sold with 8TB of SSD disk space across 4 disks. Machine learning training requires a lot of data, and one of the bottlenecks can be getting it from the storage to the GPUs. Fast SSDs on the same computer allow huge data transfer rates and random access for randomizing the order for training purposes.

We are very careful about data security. All hard drives were securely erased before being taken for this display.

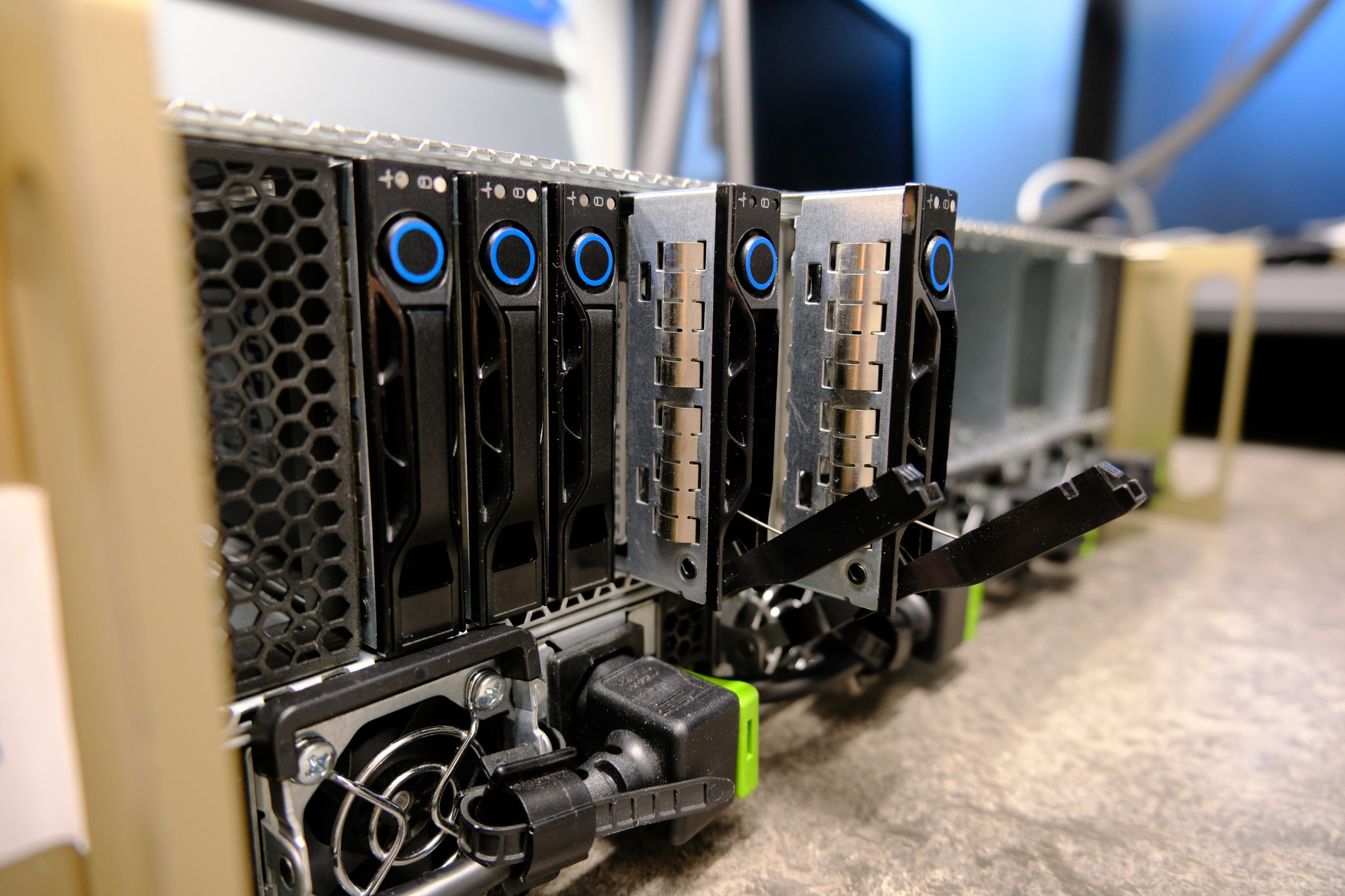

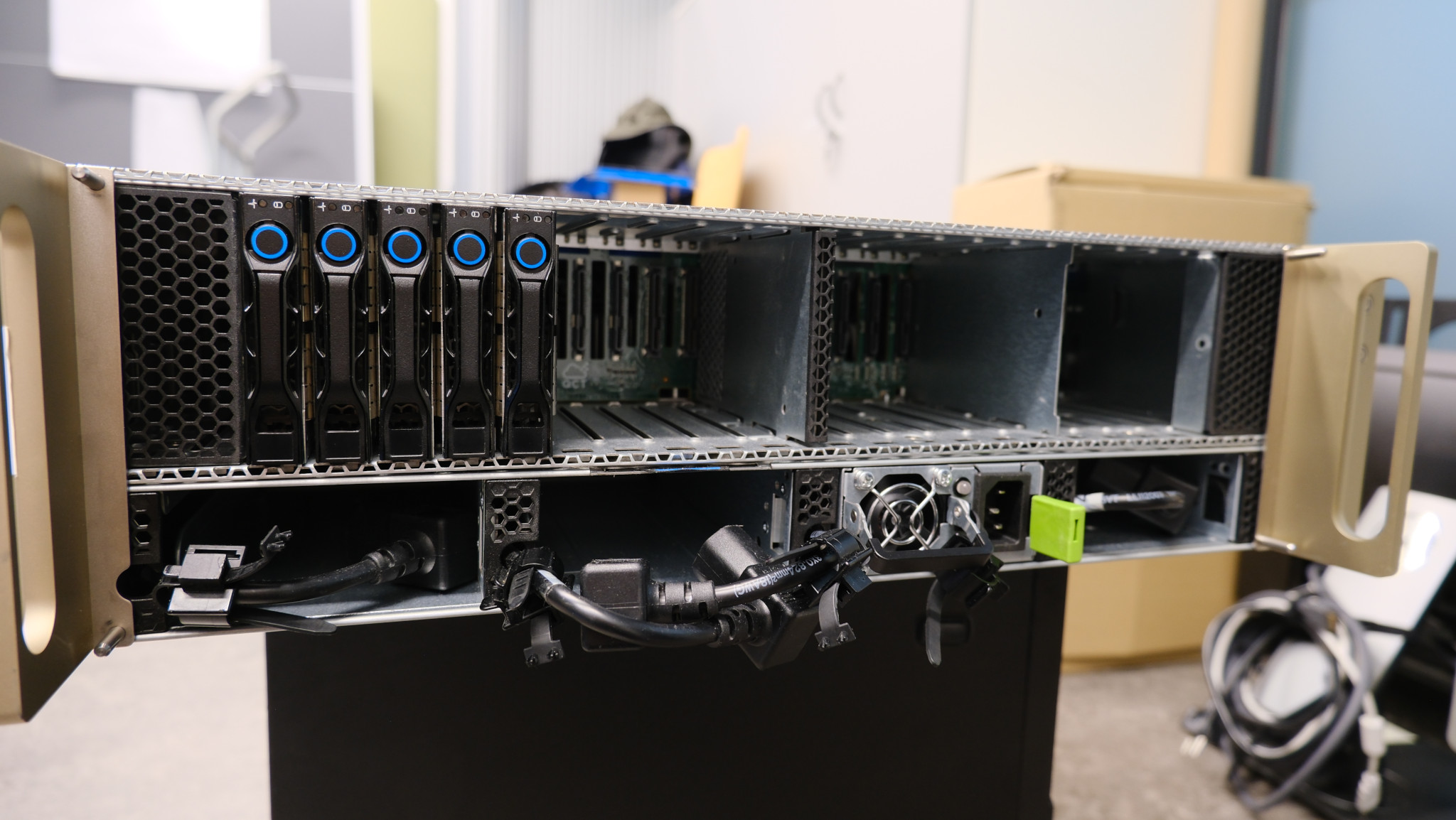

Hard drive cages

The front of the server has 20 hard drive slots. They are hot-swappable. With RAID (redundant arrays of independent disks) setup, data is stored with redundancy across disks. If a disk breaks, it can be removed, replaced, and the disk array rebuilt (data copied back to the new disk) to restore redundancy.

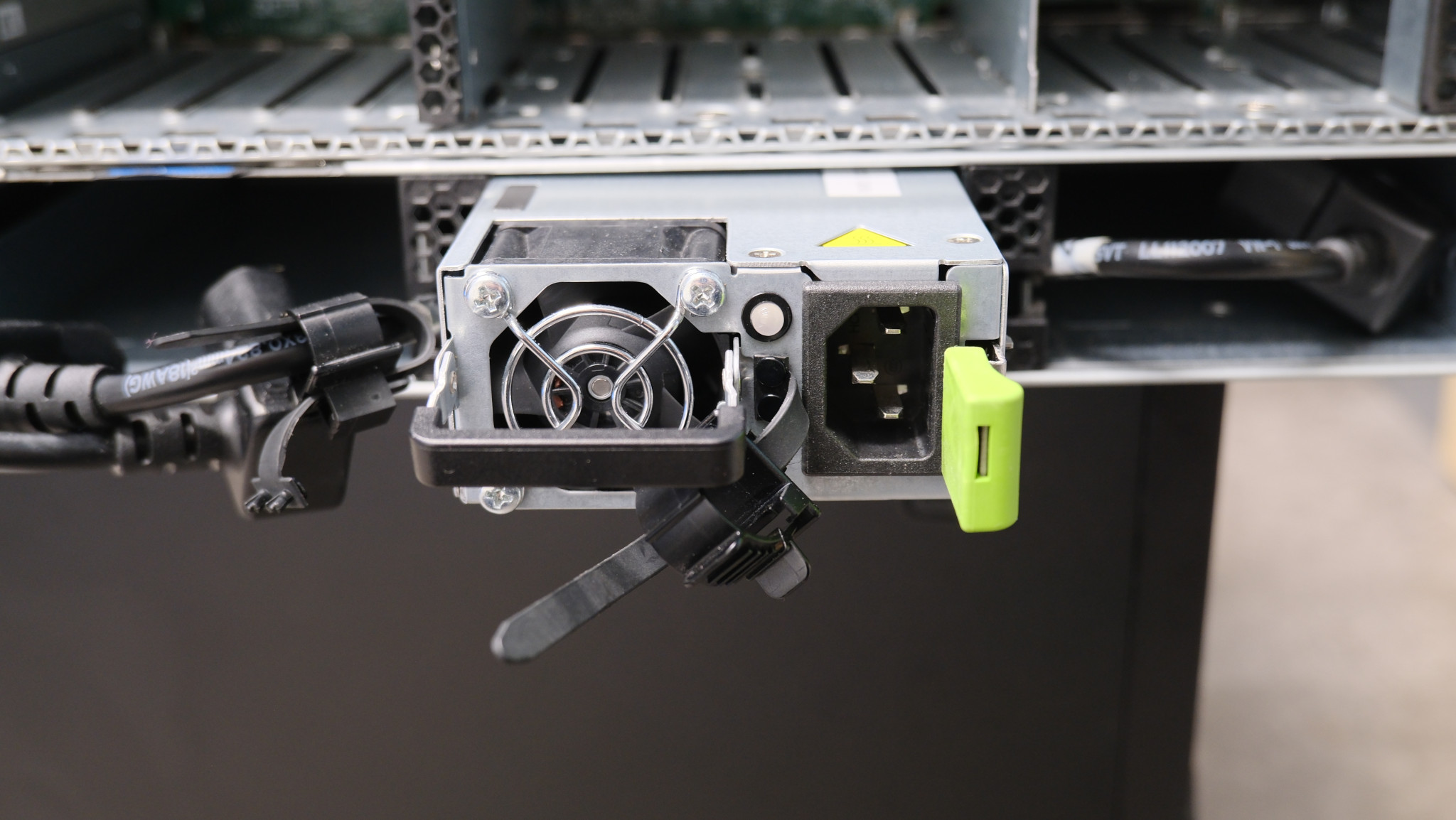

4x power supplies

The DGX-1 had 4 x 1600W power supplies, with a max power usage of 3200W. Power supplies are redundant: if one broke, you could remove it and replace it without turning off the computer. If you ran this in your home, each power supply would have to be plugged into a separate circuit.

In Finland, waste heat is often used for district heating. In 2026, Triton will move to a facility that will recover waste heat for use in Otaniemi.
